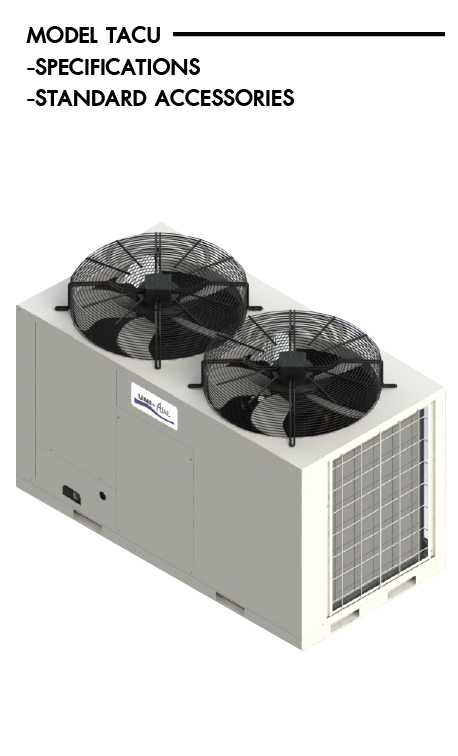

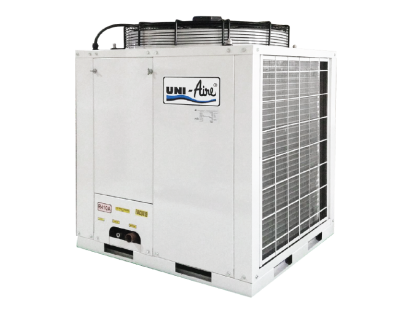

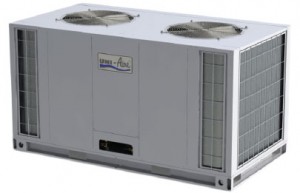

TACU (Scroll)Commercial/Commercial Condensing Unit
Air-cooled condensing unit
Cooling capacity 80,000 to 150,000 BTU/H
Green guard coated on Condenser coils Corrosion prevention caused by ocean vapor and chemicals which extends coil life span.
Copper fin condenser coil Fin made from copper, extends life span of condenser coil. Suitable for seaside area and high acidic factory environment. *Consulting Uni-Aire’s sales engineer for possibility for each location is recommended.
UNIT CASING • Constructed of zinc-coated heavy-gauge,Galvanized steel • Powder coated for protection against rust COMPRESSOR • Hermetic scroll compressor • Compressor mounted on vibration isolators AIR COOLED CONDENSER • Seamless copper tubes, mechanically expanded into aluminum ﬁns with full height collars • Leak tested at 600 PSIG from factory • Dynamically and statically balanced, direct-drive fan REFRIGERATION PARTS • Service valves for suction line and liquid line
ELECTRICAL PARTS • Magnetic contactor for fan motor • Magnetic contactor for compressor • High-Low pressure switches
