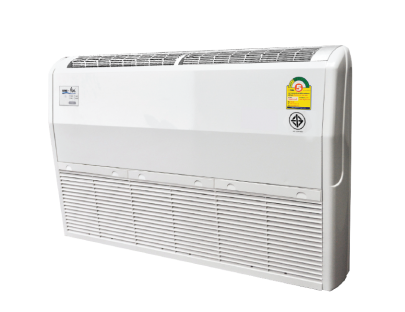

UFM / AFV

Residential/Universal Type

Floor&Ceiling type
LabelNo5, R-32 refrigerant
Cooling capacity 13,000 - 40,000 BTU/H

Made in thailand UFM-02


New Environmental-friendly R32 refrigerant
• Enhanced cooling capacity
• Fast cooling
• Higher energy saving
• New 2017 EGAT’s Label No.5 standard
• Zero Ozone Depletion Potential (ODP)
• 3 times lower Global Warming Potential (GWP) than R32


1. Durable material casing made from high - quality metal sheet, coated with anti-oxdation white powder coated
2. Copper tube Inner Groove Coopper Tube increase heat exchanger surface
3. Large Dust Filters Reduce large dust particles from room environment, easy to clean with warm water
4. Hydrophilic Coil Blue f in coated evaporatorcoil provides hydrophobic property for bad odor and mold reducing. Energy saving and last longer than normal fins.
5. Carbon Filter (Option) Filter made from carbon for bad odor elimination


• Manually adjustable air vent in 4 directions left - right & upper – lower
• Deliver cool air in wide area including area below the unit
• Available in f loor mounted  and ceiling mounted in one unit


Digital wired thermostat (standard equipment)
1. 4 Speed Motor 4 speeds adjustable wind blow Turbo-High-Medium-Low For Turbo cool or Quiet cool.
2. ECO Mode Power saving by automatically setting temperature at 25 °C
3. Turbo Fan Powerful turbo motor helps fill the coolness to the room quickly yet quietly.
4. Timer On / Off 24-hour timer for turning on or turning off the air conditioning system
5. Sleep Mode Adjust suitable tempuraturefor sleeping time


Wireless digital remote controller (optional)

1. 4 Speed Motor 4 speeds adjustable wind blow Turbo-High-Medium-Low For Turbo cool or Quiet cool.
2. ECO Mode Power saving by automatically setting temperature at 25 °C
3. Turbo Fan Powerful turbo motor helps fill the coolness to the room quickly yet quietly.
4. Timer On / Off 24-hour timer for turning on or turning off the air conditioning system
5. Sleep Mode Adjust suitable tempuraturefor sleeping time

Other features

1. Auto Restart Air conditioning system turns on automatically after electricity supply returns from a power failure. the system also memorizes every setting before the outage.
2. 3 Minute Time Delay Prevent damage to the compressor fromvoltage sag or power failure.



Casing made from high-quality sheet metal, coated with anti-oxidation white color. Durable with great heat rejection performance from advanced aerodynamic fan design, Compact size for easy installation in small spaces.

UFM AFV-03
