Decor Series (CSV/AFVY and CSQ/AFQY)

Residential/Cassette Type

Cassette
LabelNo5, R-32 refrigerant
Cooling capacity 18,000-50,000 BTU/H

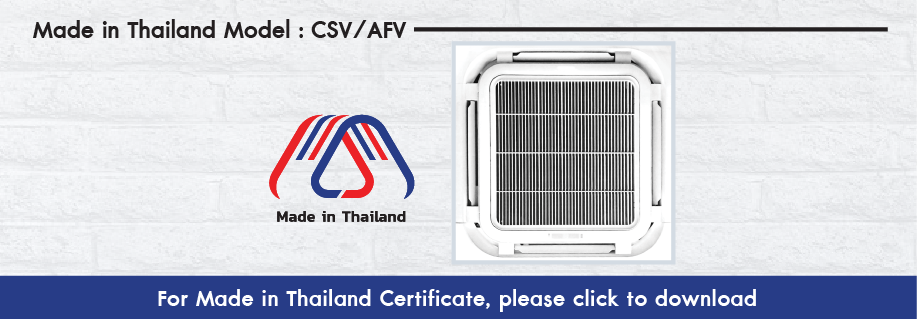

Made in thailand CSV-02


New Environmental-friendly R32 refrigerant
• Enhanced cooling capacity
• Fast cooling
• Higher energy saving
• New 2017 EGAT’s Label No.5 standard
• Zero Ozone Depletion Potential (ODP)
• 3 times lower Global Warming Potential (GWP) than R32


ฝังฝ้า สี่ทิศทาง-02


ฝังฝ้า สี่ทิศทาง-06


ฝังฝ้า สี่ทิศทาง-07


ฝังฝ้า สี่ทิศทาง-08


Normal aluminium fins collect dust between fin gaps suitable for mold to grow difficult to clean prone to corrosion high maintenance cost


Blue fin coated evaporator coil provides hydrophobic property for bad odor and mold reducing. Energy savingand last longer than normal fins.


Standard built-in drain pumps with head height up to 700 mm, creating a ideal solution for water drainage.


The air intake grill can be easily disassembled by just push-open action, and can be still attached to the unit by 90 degree rotate angle, designed for easy maintenance and filter cleaning.


The newly designed cassette type, featured with round flowair-out directions, deliver you more comfortable feeling of air


Differential swing angles to ensure comfortable feeling in anytime and anywhere.


Casing made from high - quality metal sheet, coated with anti - oxidation white powder coated. Durable with great heat transfered performance from advanced aerodynamic fan design. Compact size, easy installation in small space.

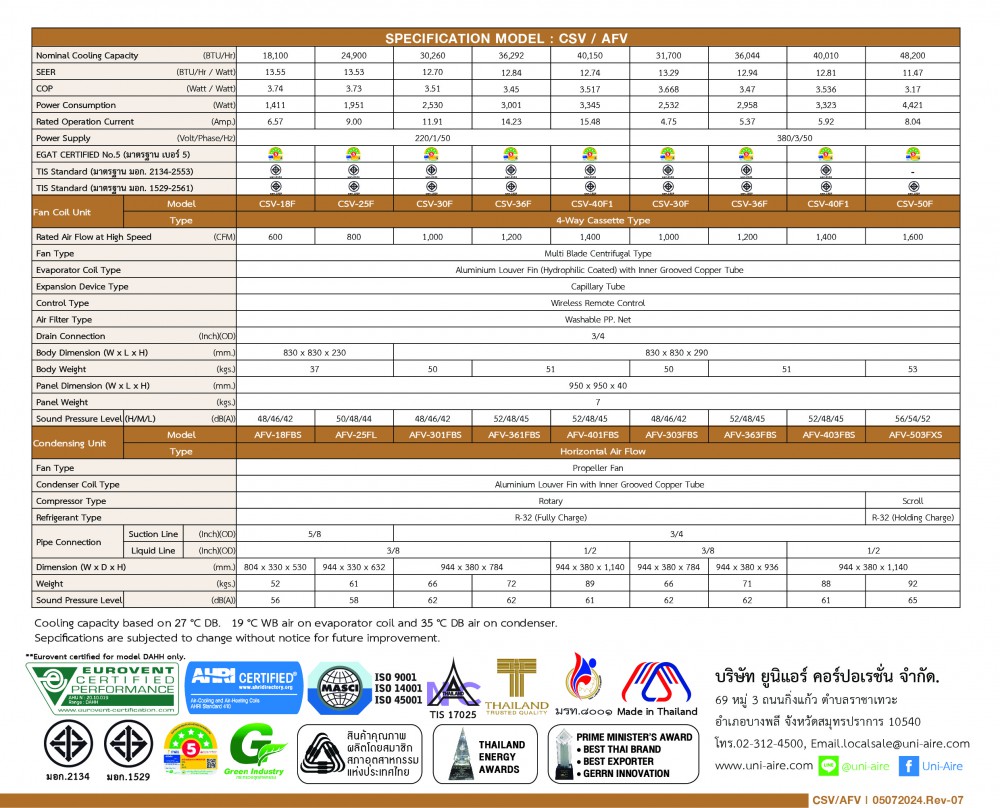

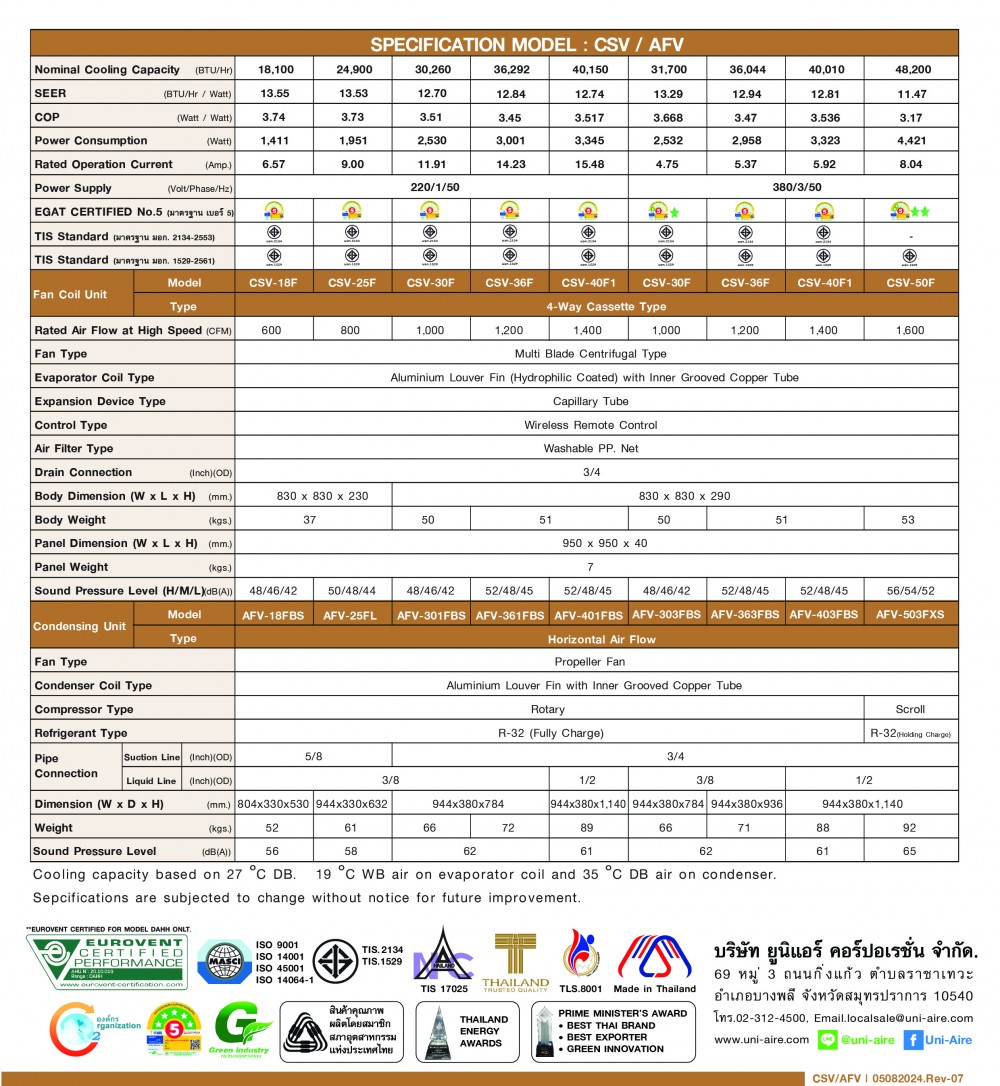

CSV-CSQ AFVY-AFV-03
