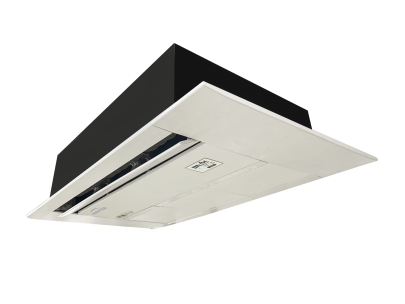

CNV / AFV

Residential/Ceiling-concealed Type

One way cassette type
LabelNo5, R-32 refrigerant
Cooling capacity 14,000 - 60,000 BTU/H

New Environmental-friendly R32 refrigerant
• Enhanced cooling capacity
• Fast cooling
• Higher energy saving
• New 2017 EGAT’s Label No.5 standard
• Zero Ozone Depletion Potential (ODP)
• 3 times lower Global Warming Potential (GWP) than R32

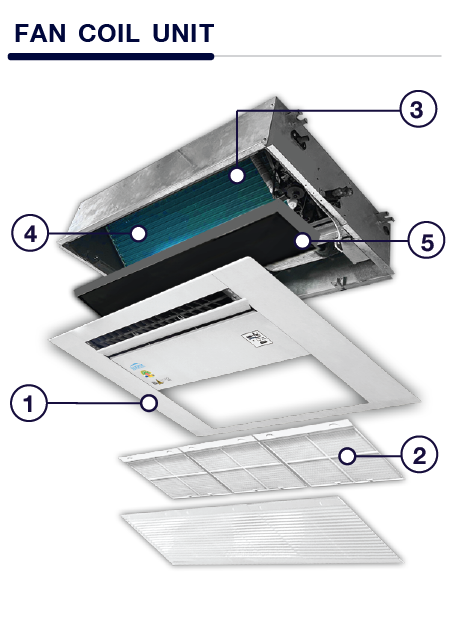

1. Durable material casing made from high - quality metal sheet,coated with anti - oxdation white powder coated
2. Large Dust Filters Reduce large dust particles from room environment, easy to clean with warm water
3. Copper tube Plain Tube increase heat exchanger surface
4. Aluminum blue fins Improves the efficiency of heat exchange
5. Drain tray with waterproof insulation Prevent condensation under the drain pan


Built-in high head drain pump
Standard built-in drain pumps with head height up to 700 mm, creating a ideal solution for water drainage.

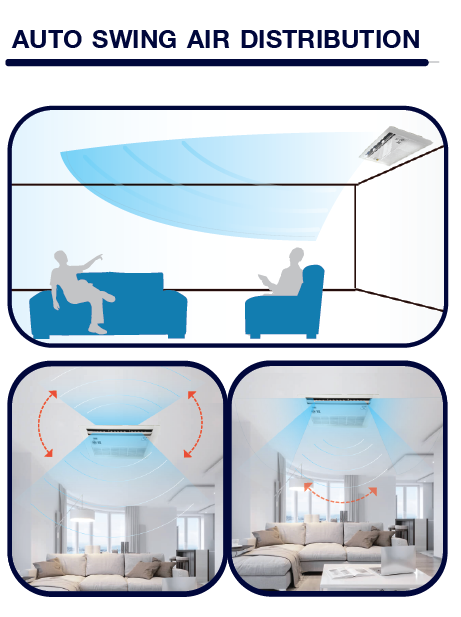

  • Deliver cool air in wide area including area below the unit
  • 4 direction auto-swing air louver


Digital wired thermostat (standard equipment)
1. 4 Speed Motor 4 speeds adjustable wind blow Turbo-High-Medium-Low For Turbo cool or Quiet cool.
2. ECO Mode Power saving by automatically setting temperature at 25 °C
3. Turbo Fan Powerful turbo motor helps fill the coolness to the room quickly yet quietly.
4. Timer On / Off 24-hour timer for turning on or turning off the air conditioning system
5. Sleep Mode Adjust suitable tempuraturefor sleeping time
6. 4 Directional airflow Intelligent airflow system. Auto swing louver for a better air flow, both vertical and horizontal directions.


Wireless digital remote controller (optional)

1. 4 Speed Motor 4 speeds adjustable wind blow Turbo-High-Medium-Low For Turbo cool or Quiet cool.
2. ECO Mode Power saving by automatically setting temperature at 25 °C
3. Turbo Fan Powerful turbo motor helps fill the coolness to the room quickly yet quietly.
4. Timer On / Off 24-hour timer for turning on or turning off the air conditioning system
5. Sleep Mode Adjust suitable tempuraturefor sleeping time
6. 4 Directional airflow Intelligent airflow system. Auto swing louver for a better air flow, both vertical and horizontal directions.
Other features

1. Auto Restart Air conditioning system turns on automatically after electricity supply returns from a power failure. the system also memorizes every setting before the outage.
2. 3 Minute Time Delay Prevent damage to the compressor fromvoltage sag or power failure.


ตั้งแขวน-28


Casing made from high-quality sheet metal, coated with anti-oxidation white color. Durable with great heat rejection performance from advanced aerodynamic fan design, Compact size for easy installation in small spaces.

CNV-06CNV-08
