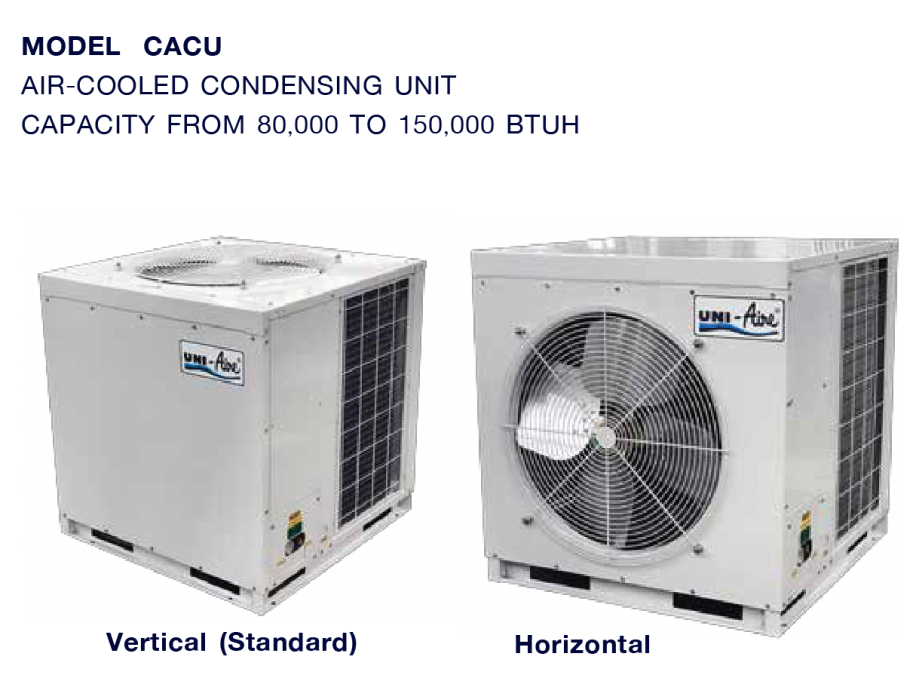

CACU (Scroll)
เครื่องปรับอากาศเชิงพาณิชย์/เครื่องระบายความร้อนด้วยอากาศคอนเดนซิ่งแบบระบายความร้อนด้วยอากาศ
สลับทิศทางเป่าขึ้นหรือเป่าข้าง
Scroll compressor
R-410a refrigerant
Cooling capacity 80,000-150,000 BTU/H
6.7 - 12.5 TR
23.4 - 44.0 kW

FEATURES
• Compact size and easy installation
• Flexible air discharge configuration
• Vertically(Standard) or Horizontally(On-side swopped)
• High efficiency hermetic scroll compressor
• Direct drive condenser fan
• High and low pressure switches for protection standard on all units
• R-410A(Standard), R-407c (Option) or R-22 (Option) refrigerant

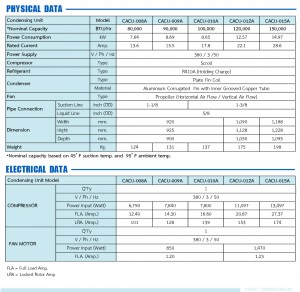

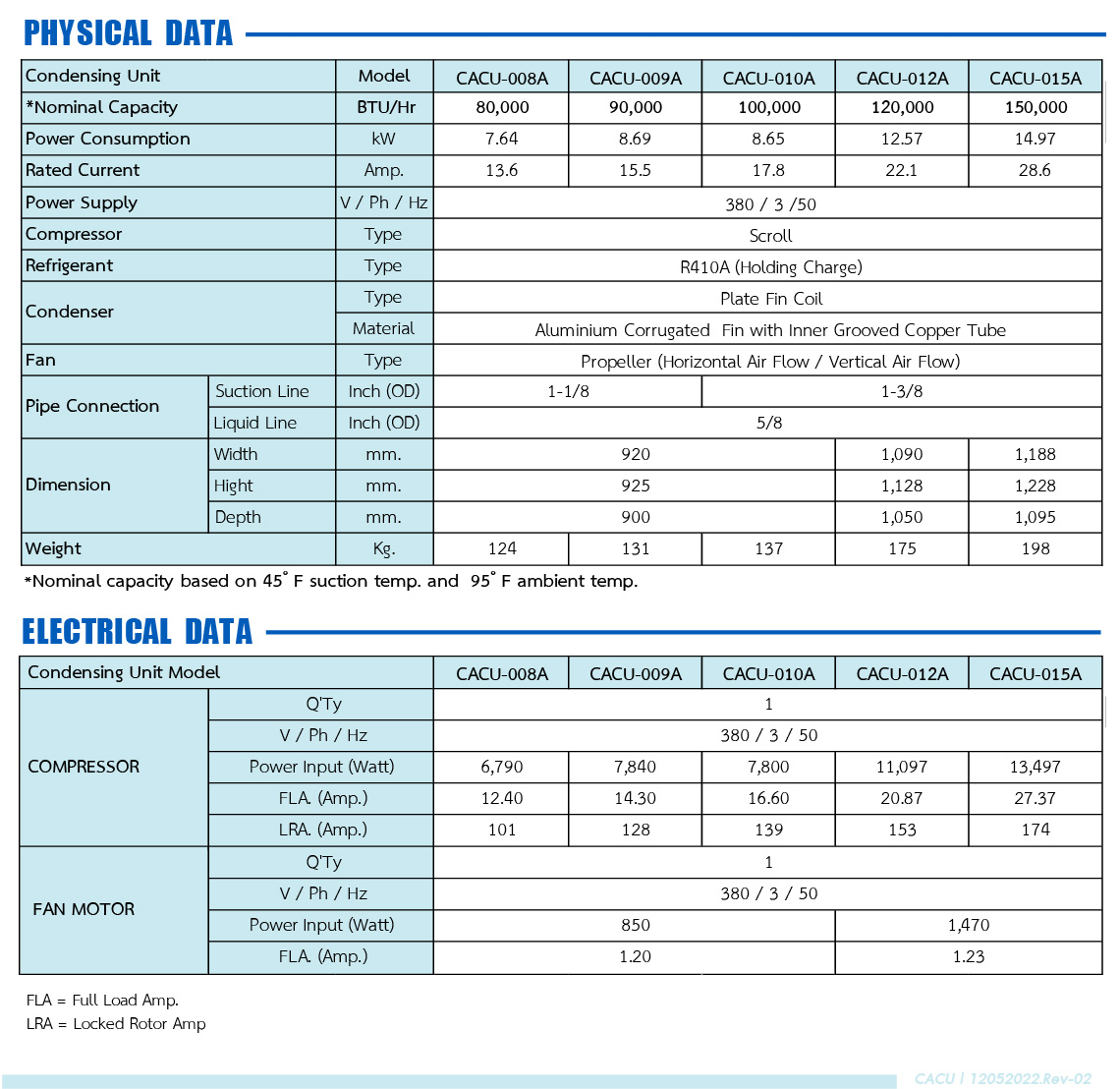

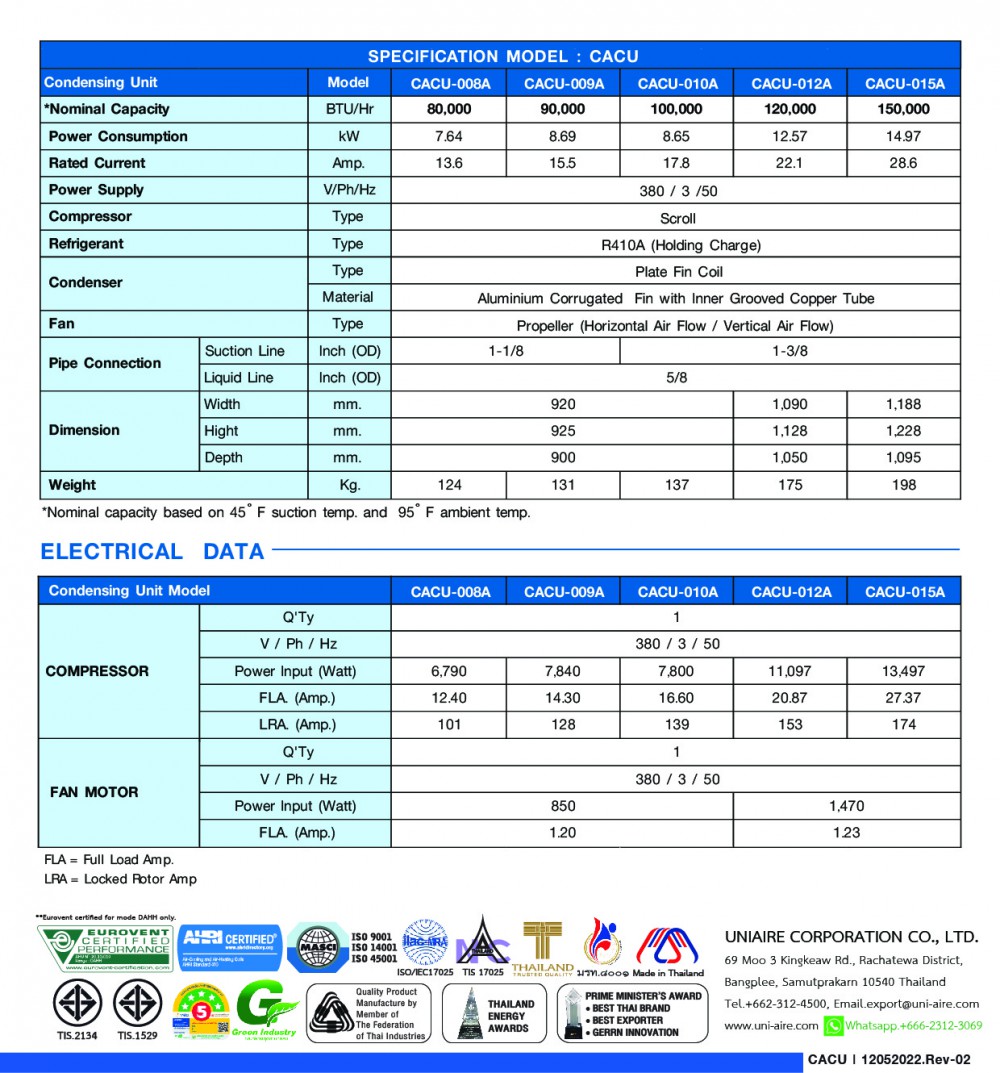

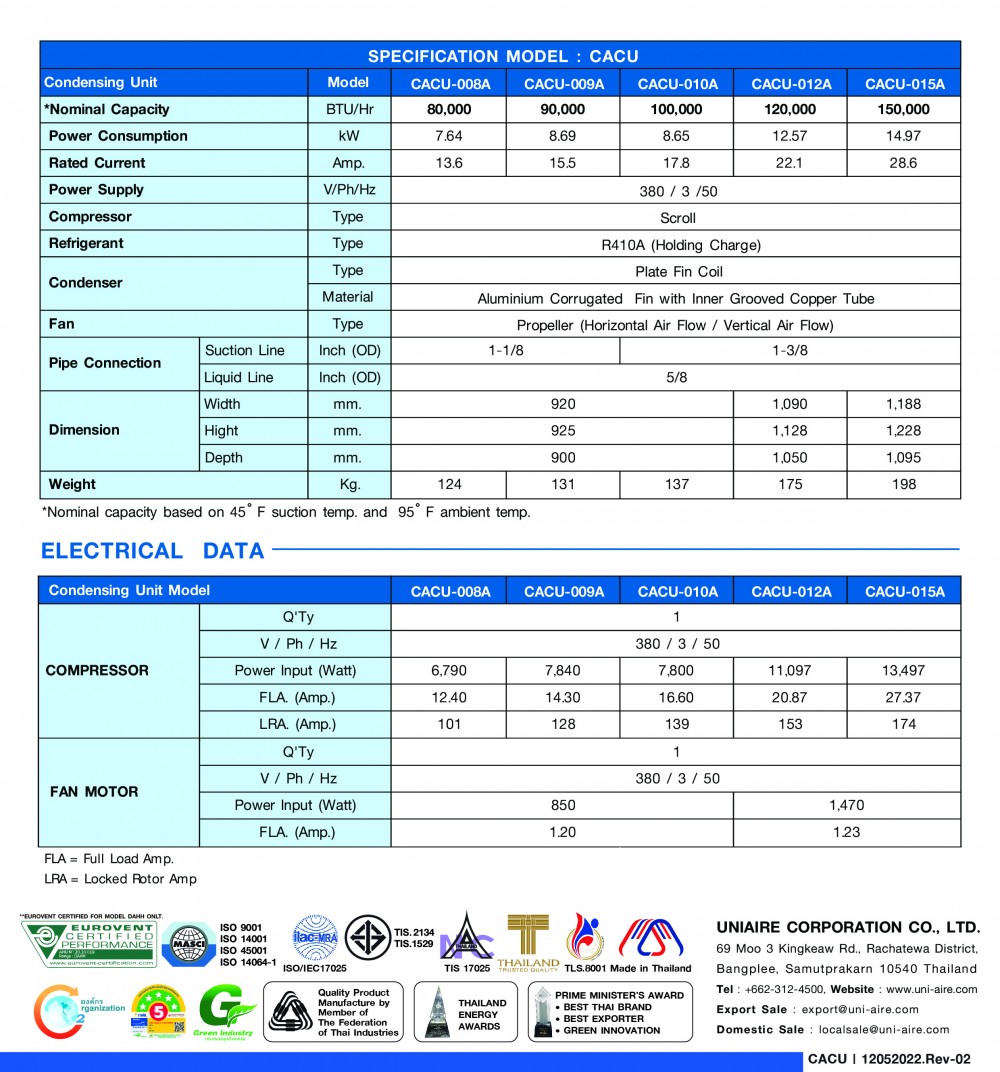

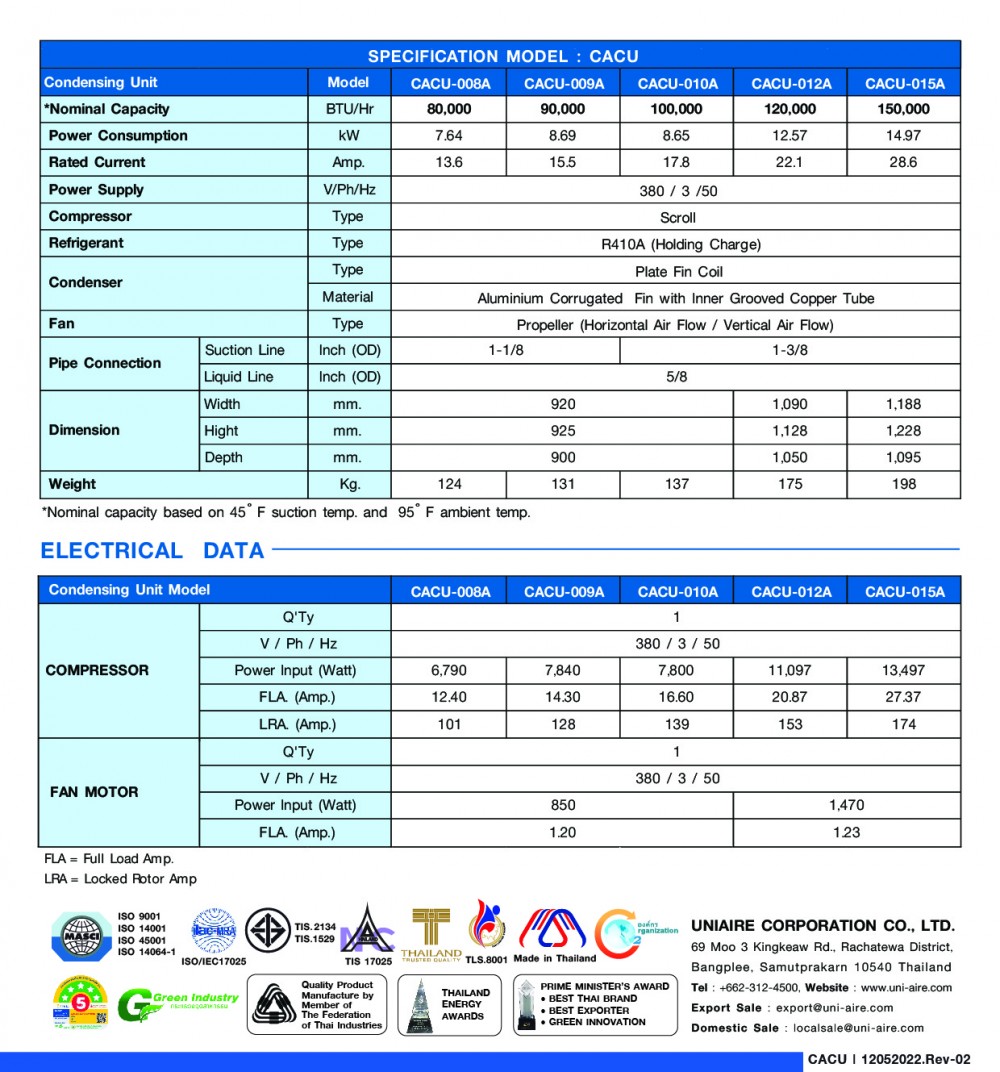

SPECIFICATIONS
UNIT CASING
• Flexible air discharge configuration - Vertical (Standard) or Horizontal
• Constructed of zinc-coated heavy-gauge, Galvanized steel.
• Powder coated for protection against rust.
COMPRESSOR
• Hermetic scroll compressor.
• All compressor are mounted on vibration isolators.
AIR COOLED CONDENSER • Seamless copper tubes, mechanically expanded into aluminum fins with full height collars. • Leak tested at 600 psig from factory. • Dynamically and statically balanced, direct-drive fan
STANDARD ACCESSORIES REFRIGERATION PARTS • Ball valves for suction line and liquid line ELECTRICAL PARTS • Magnetic contactor for fan motor. • Magnetic contactor for compressor. • High-Low pressure switches
