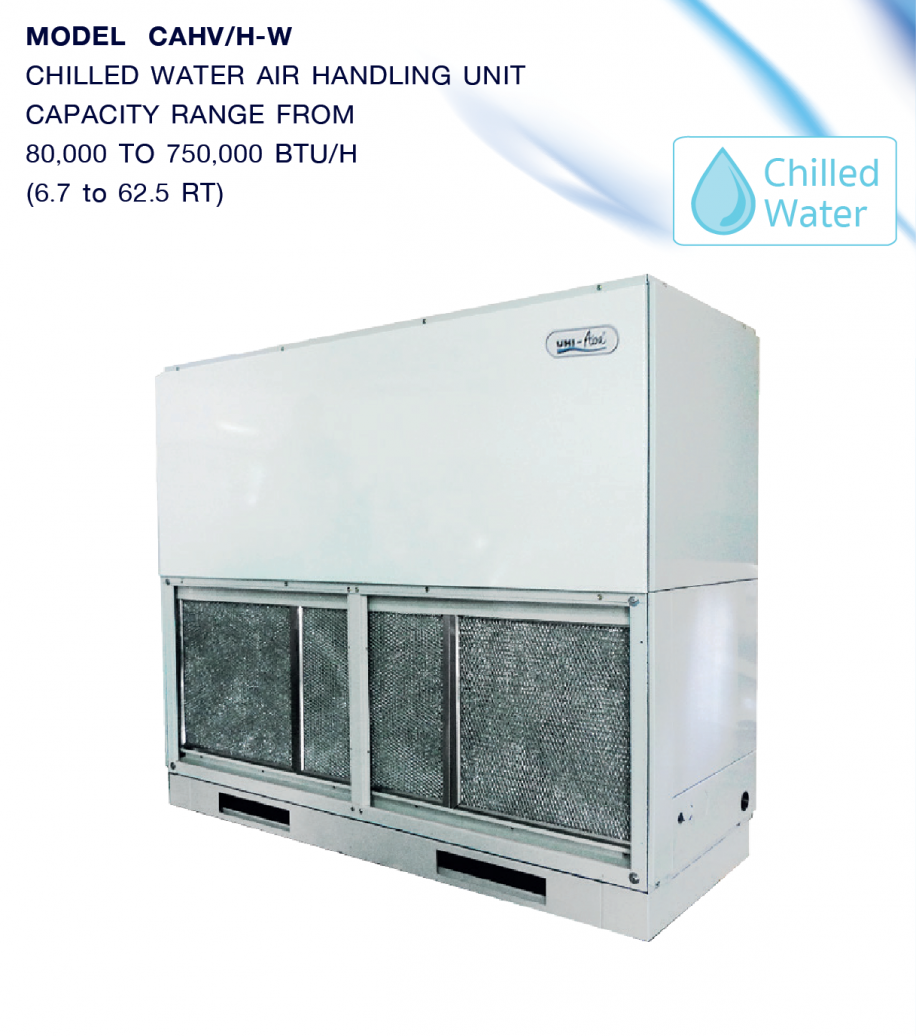

CAHV/H-W
เครื่องปรับอากาศเชิงพาณิชย์/เครื่องปรับอากาศแบบคอยล์น้ําเย็นแบบต่อท่อลม (AHU),คอยล์น้ำเย็น
ขนาดความเย็น 80,000-750,000 BTU/H

FEATURES
• Easy Installation & Maintenance
• High Performance & High External static
• Heavy-duty Blower
• Copper tube with Aluminium Fin Coils
Casing
• A sturdy, electro-zinc coated steels sheet cabinet is provided in modern SLIM design. All members of the cabinet are die formed that assures a good dimensional and quality control. Cabinet are finished in HARMONY BEIGE color of ELECTROSTATIC POWDER painting process that provides a double protection against rust.

Cooling Coil (Chilled Water) • Constructed of copper tube with corrugated aluminium f in • High heat transfer surface • Leak tested at 250 psig
