UFQ-W

Commercial/Chilled-water Fan Coil Unit

Floor&Ceiling type,
Chilled-water
Cooling capacity 12,000-60,000 BTU/H

UFQ-W-02


1. Durable material casing made from high - quality metal sheet, coated with anti - oxdation white powder coated
2. Copper tube Inner Groove Coopper Tube increase heat exchanger surface
3. Large Dust Filters Reduce large dust particles from room environment, easy to clean with warm water


• Manually adjustable air vent in 4 directions left - right & upper – lower
• Deliver cool air in wide area including area below the unit
• Available in f loor mounted  and ceiling mounted in one unit


Digital wired thermostat  (For controlling the NO-PFF water valve system only.)
1. 4 Speed Motor 4 speeds adjustable wind blow Turbo-High-Medium-Low For Turbo cool or Quiet cool.
2. ECO Mode Power saving by automatically setting temperature at 25 °C
3. Turbo Fan Powerful turbo motor helps fill the coolness to the room quickly yet quietly.
4. Timer On / Off 24-hour timer for turning on or turning off the air conditioning system
5. Sleep Mode Adjust suitable tempuraturefor sleeping time


Wireless digital remote controller (optional)

1. 4 Speed Motor 4 speeds adjustable wind blow Turbo-High-Medium-Low For Turbo cool or Quiet cool.
2. ECO Mode Power saving by automatically setting temperature at 25 °C
3. Turbo Fan Powerful turbo motor helps fill the coolness to the room quickly yet quietly.
4. Timer On / Off 24-hour timer for turning on or turning off the air conditioning system
5. Sleep Mode Adjust suitable tempuraturefor sleeping time

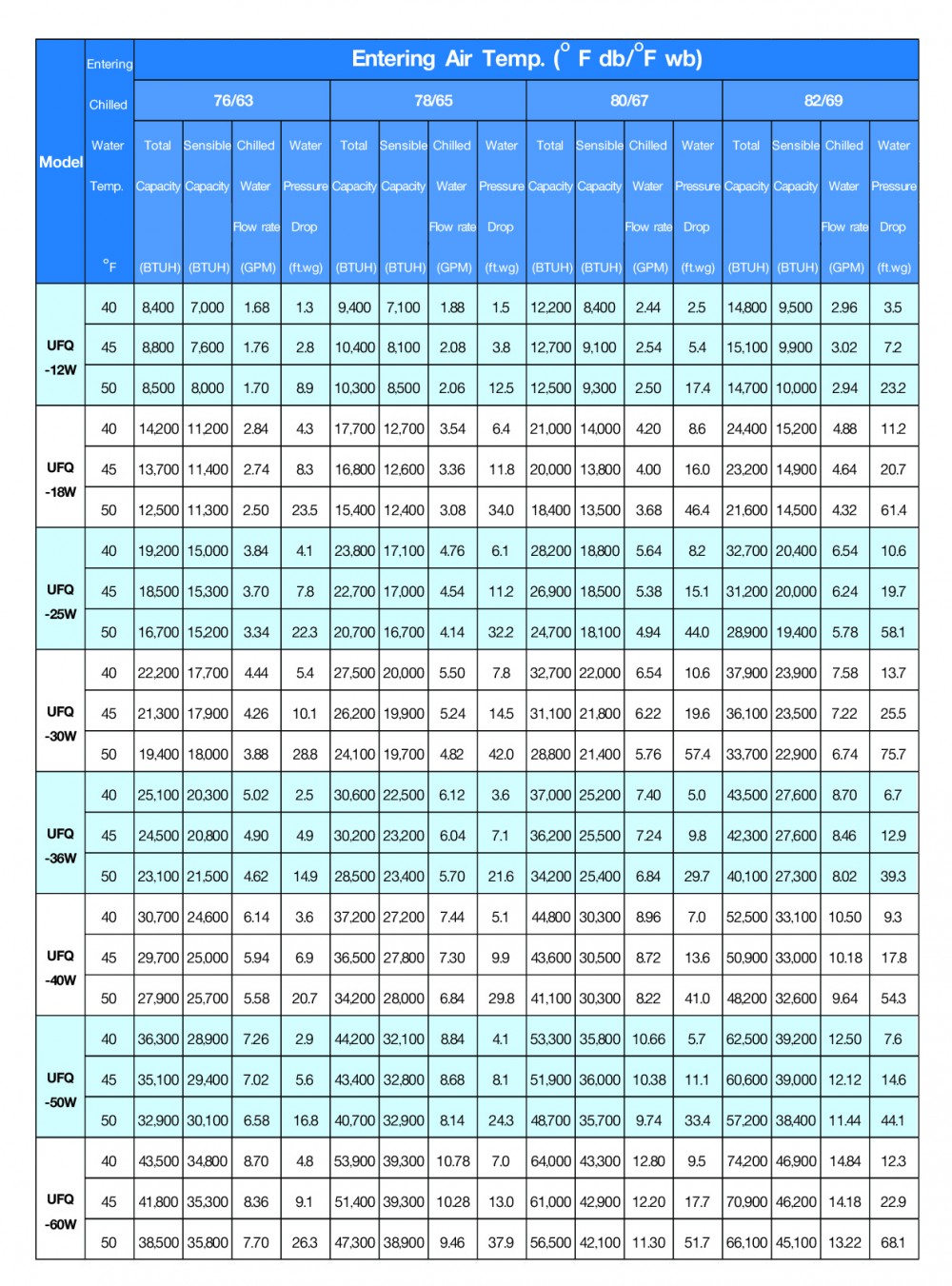

spac UFQ_W-01

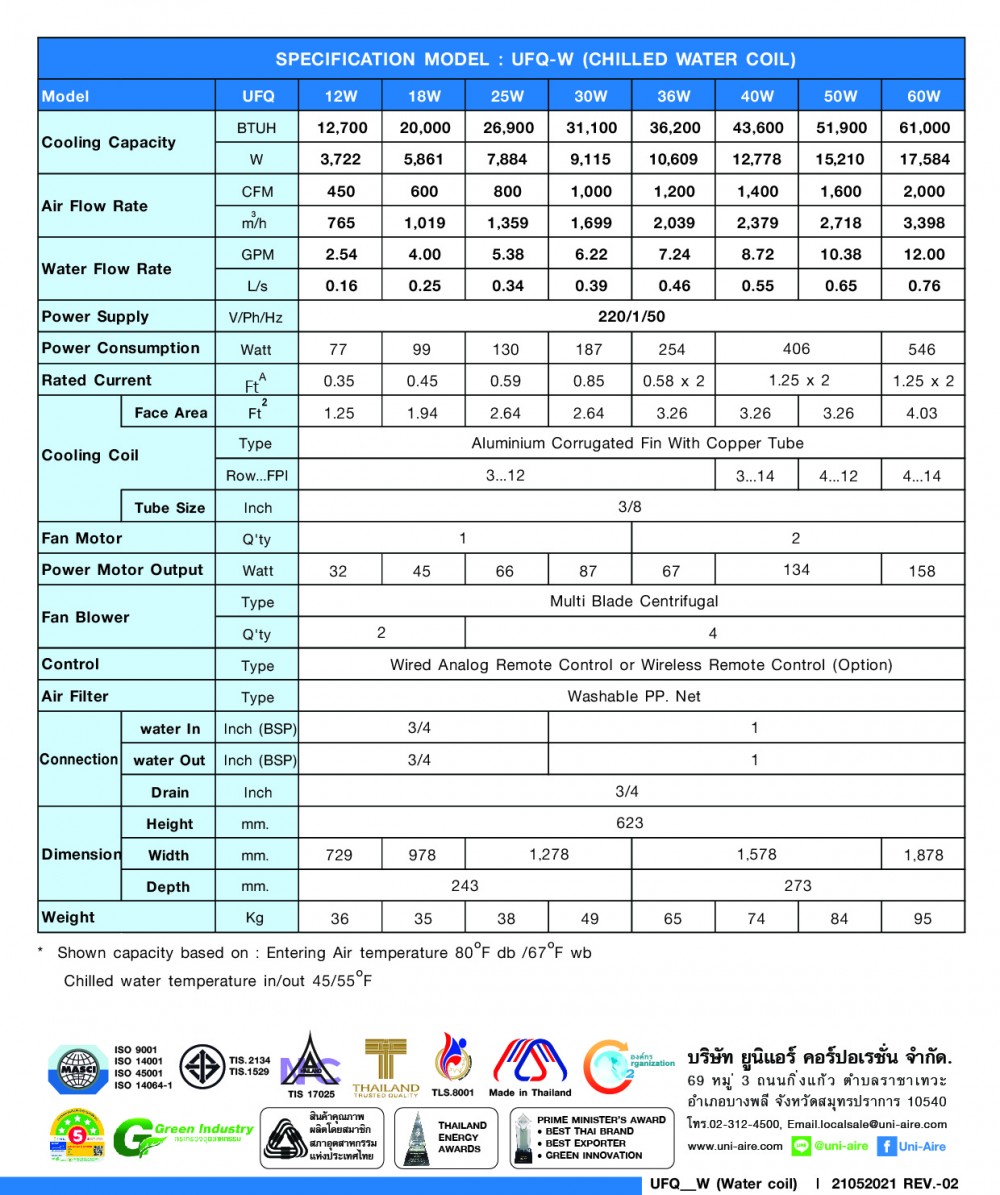

spac UFQ_W-02
