SH (สำหรับส่งออกเท่านั้น)เครื่องปรับอากาศเชิงพาณิชย์/เครื่องปรับอากาศ แบบต่อท่อลม
ขนาดความเย็น 24,000 - 60,000 BTU/H

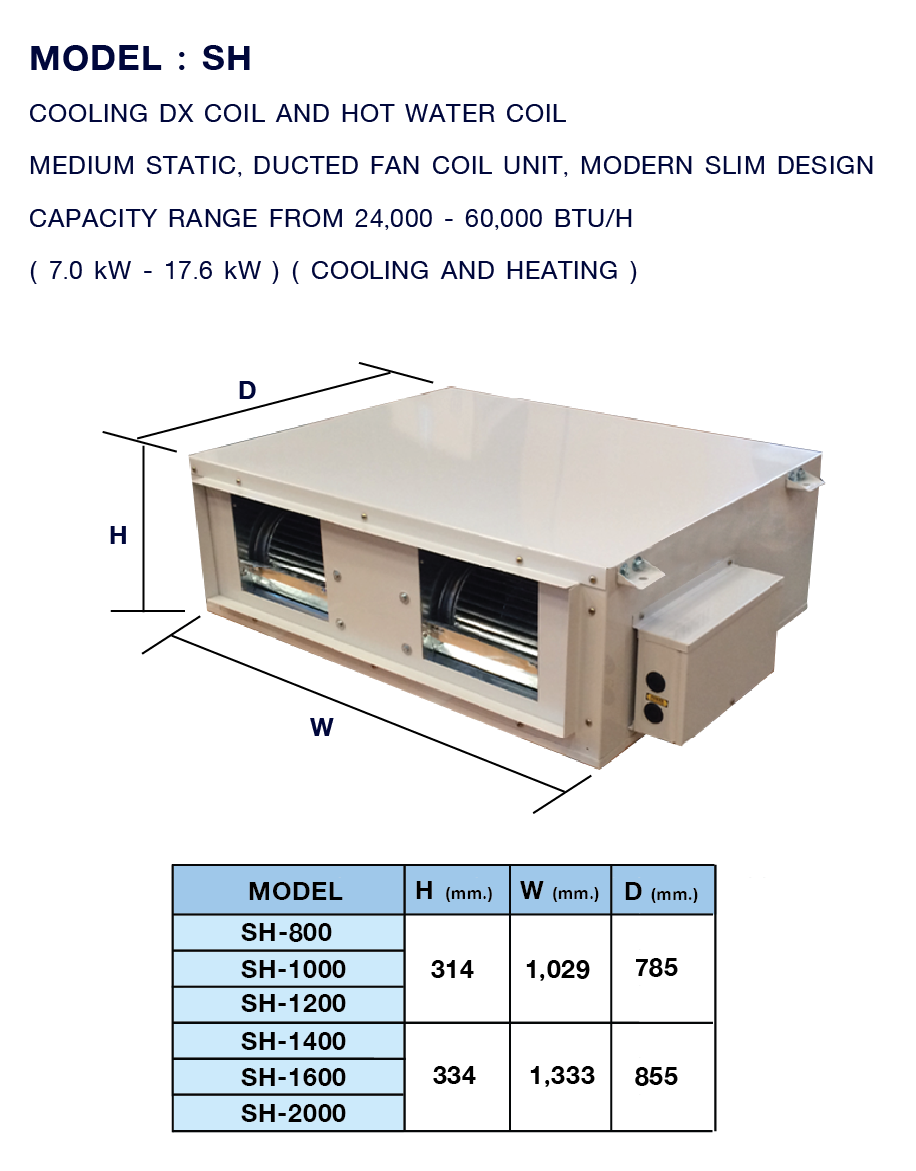

• Ceiling concealed mounted. • Draw through type with return air filter. • Mode Cooling / Heating. • Super Slim design , unit height is only 314 mm. for model 800 - 1200 and height 334 mm. for model 1600 - 2000. • Wide range of indoor airflows from 800 CFM to 2000 CFM • Durable construction. • The exterior panels are insulated with 10 mm. thick polyethylene foam. • The insulation is affixed to the casing with water proof adhesive. • The Refriserant are R410A.

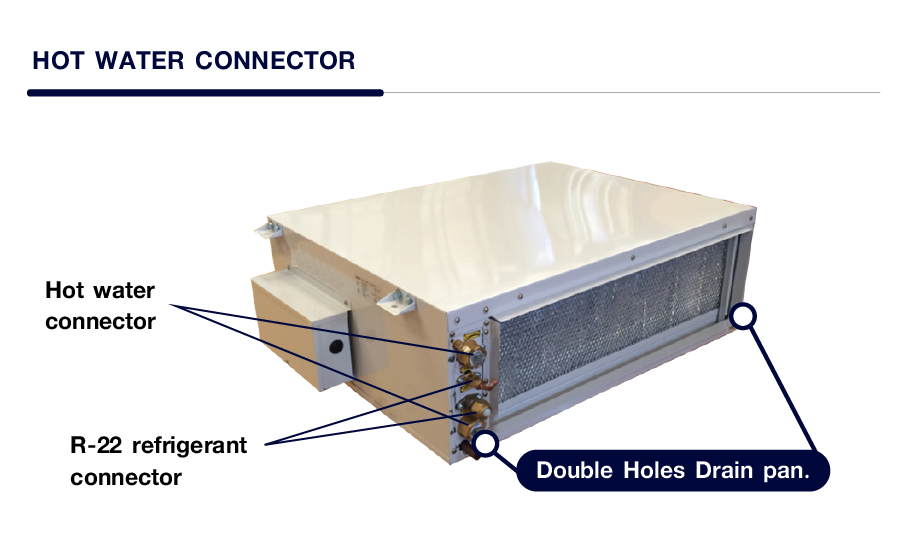

• The coil consists of full face coil with counter flow circuits. • Each coil is degreased internally and externally, and completely dehydrated before assembly. • The water coil and DX coil, can be separated for easy maintenance or replacement • DX Coil : staggered copper tubes mechanically bonded into aluminium fins, brazed in nitrogen atmosphere, leak test at 300 pisg. • Hot Water Coil staggered copper tubes mechanically bonded into aluminium fins, brazed in nitrogen atmosphere, leak test at 300 psig3
BLOWER • The blower is the double inlet, forward curved centrifugal type and statically and • dynamically balanced.
Condensation Removal • Drip pan either water-repellent type insulation to ensure positive removal of all condensation and prevent condensation on the underside of the drip pan. • The unit shall have double drain tray with separate drain connection.
Digital Wired Room Thermostat Control (Able to receive signal from wireless remote control) 1. Timer On-Off 24-hour timer for turning on or turn off the air conditioning system. 2. Sleep Mode Adjust suitable temperature for sleeping time. 3. 3-Minute Compressor Turn-On Delay Prevent damage to the compressor from voltage sag or power failure. 4. Fan 3 Speed High-Medium-Low 5. Mode 5 Functions Fan-Cool-Dry-Heat-Auto Respond for your life. 6. Expert Control System for Heat Mode 24-When room temperature reaches the set value, blower will stop. When system has no hot water supply, blower will stop.
Casing made from high-quality sheet metal, coated with anti-oxidation white color. Durable with great heat rejection performance from advanced aerodynamic fan design. Compact size for easy installation in small spaces.
