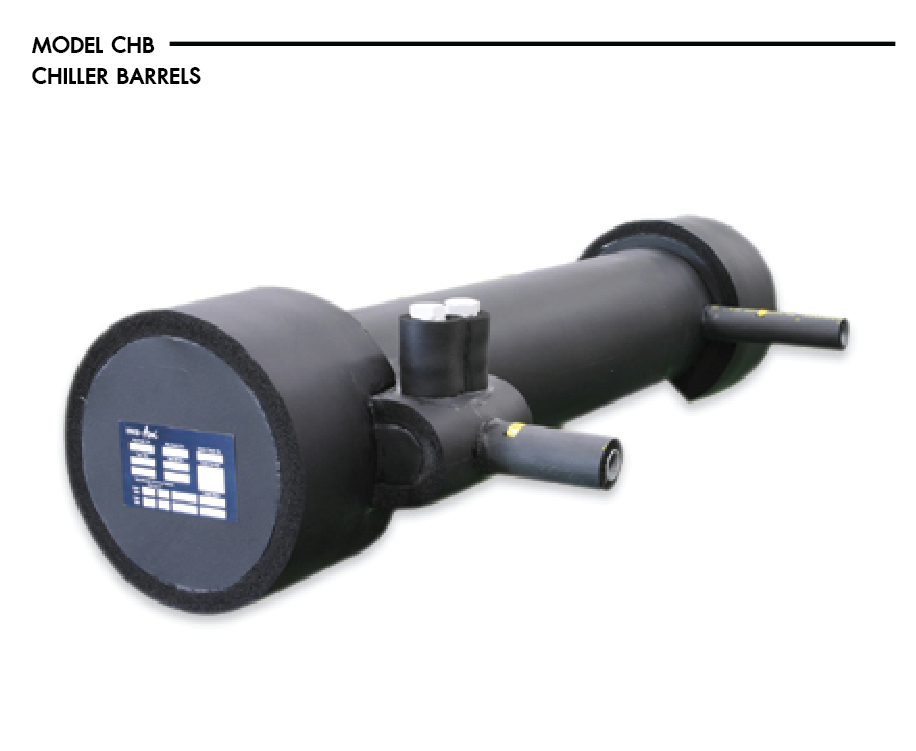

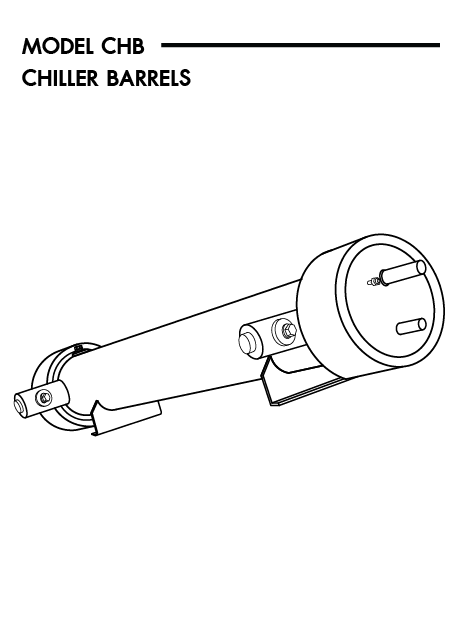

Chiller Barrel

อุปกรณ์แลกเปลี่ยนความร้อน/shell-tube-water-chiller

เครื่องแลกเปลี่ยนความร้อนด้วยน้ำเย็น ประสิทธิภาพสูง
5 - 300 TR

FEATURES
  • HIGH EFFICIENCY IN PERFORMANCE, LOW WATER PRESSURE DROP AND COMPACT DESIGNED.
  • ALUMINIUM STAR RODS FITTED IN COPPER TUBING, CREATE TURBULENCE REFRIGERANT FLOW AND CAUSE HIGHER HEAT TRANSFER EFFICIENCY.
  • REMOVEABLE HEADS AND PROPER SELECTION OF HEAD PASS AVOIDS EXCESSIVE REFRIGERANT PRESSURE DROPS.
  • CONTROLLED REFRIGERANT VELOCITIES. INSURE POSITIVE OIL RETURN
  • HIGH COLUMN STRENGTH TUBE DESIGN REDUCES THE HAZARD OF FREEZE-UP.
  • HIGH CORROSIVE RESISTANCE, WITH SPECIAL RUST PROTECTION CHEMICAL, COATED INSIDE THE SHELL.
  • COMPLETE INSULATION FROM FACTORY.
  • SINGLE OR MULTI CIRCITS OPTION TO SUIT VARIOUS LOAD CONDITIONS.
  • COMPUTER ASSISTED SIZING SERVICE AVAILABLE ON ALL APPLICATIONS.

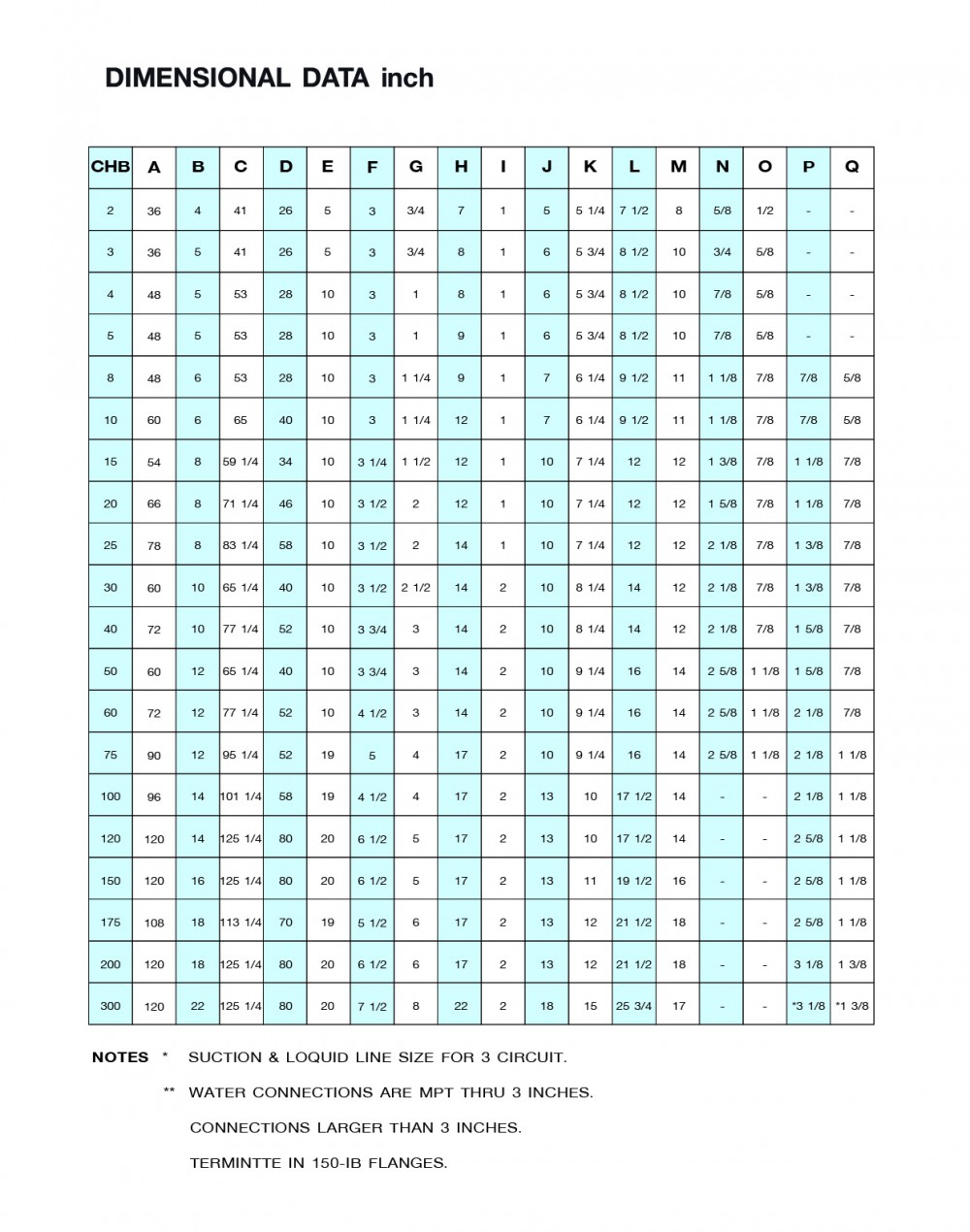

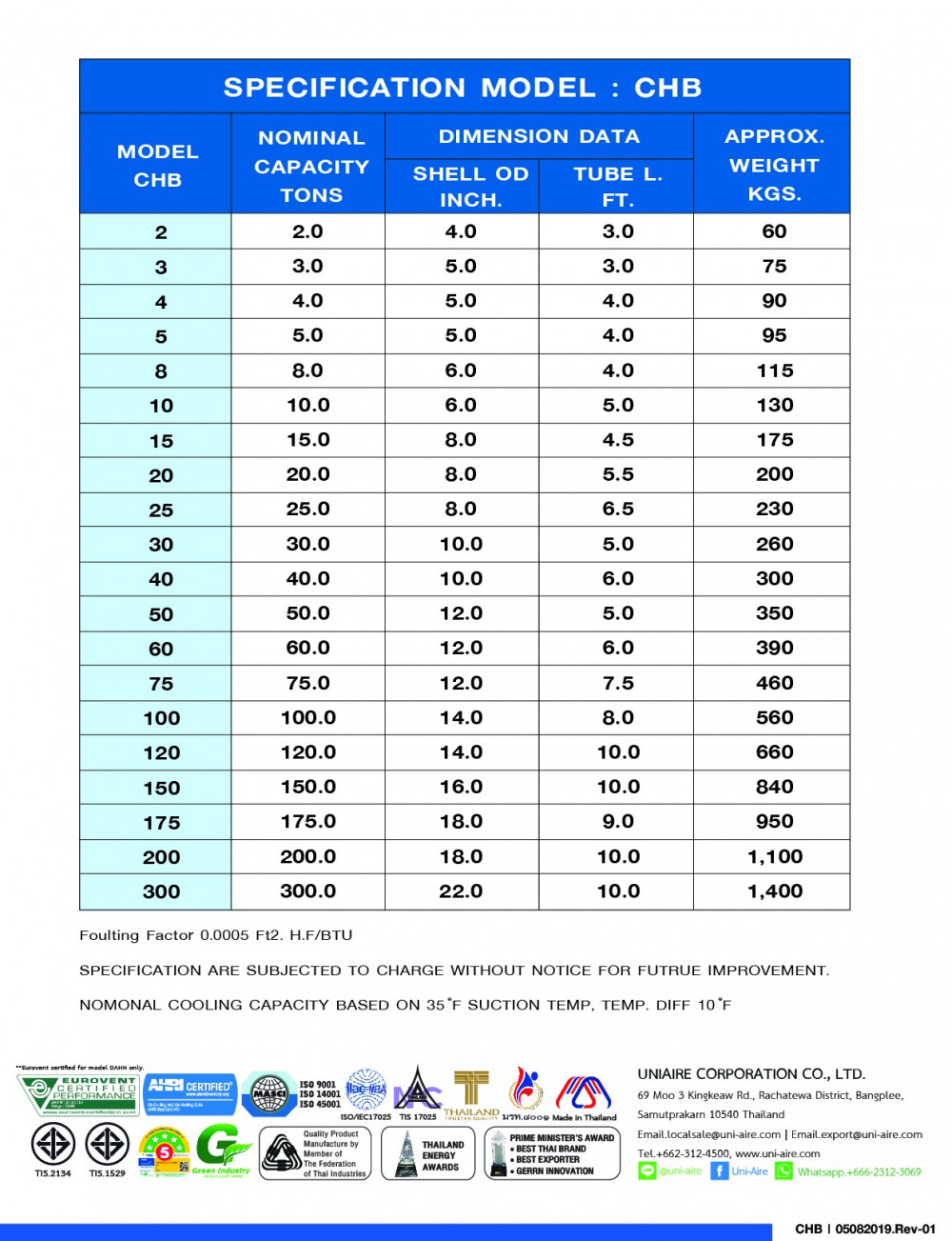

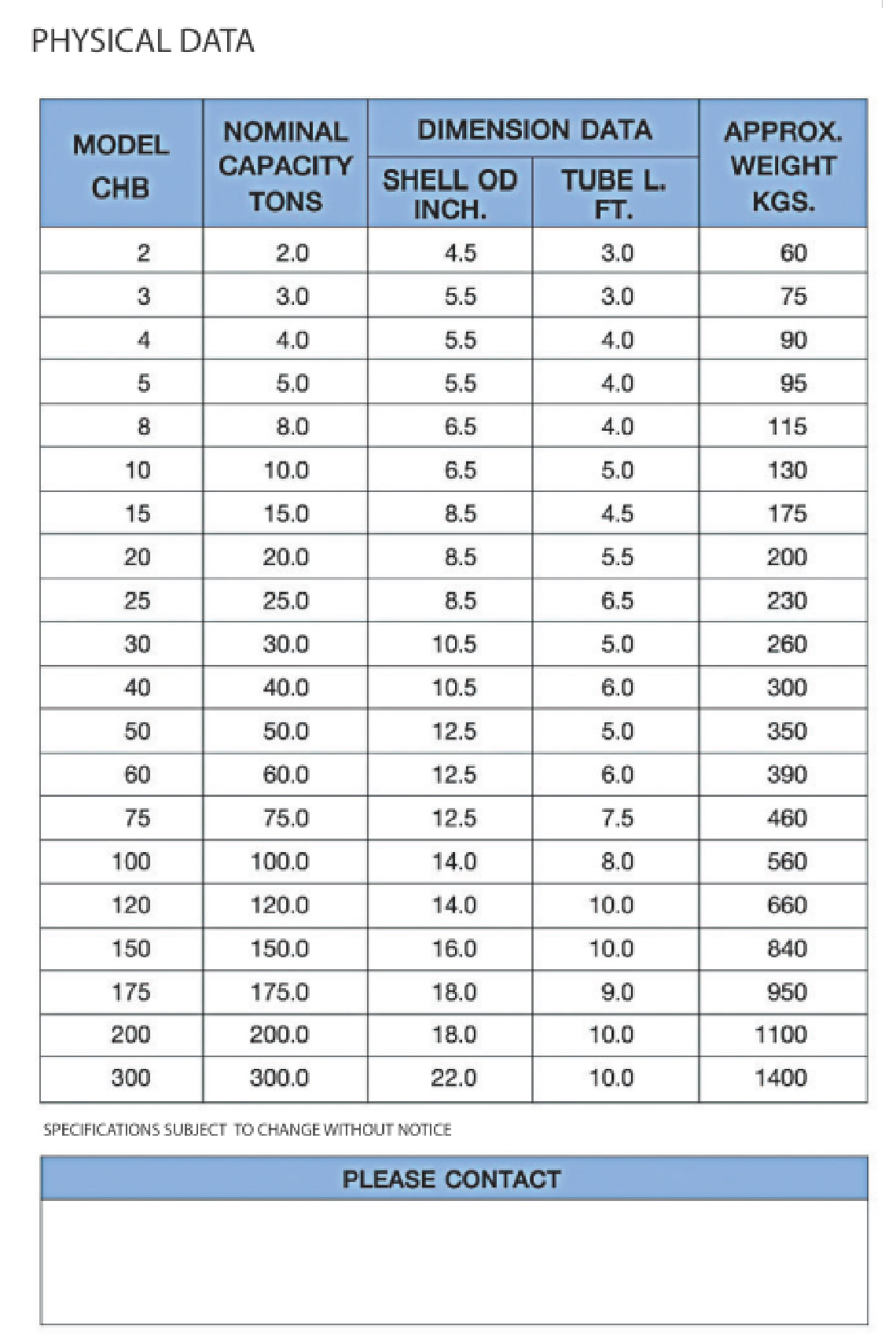

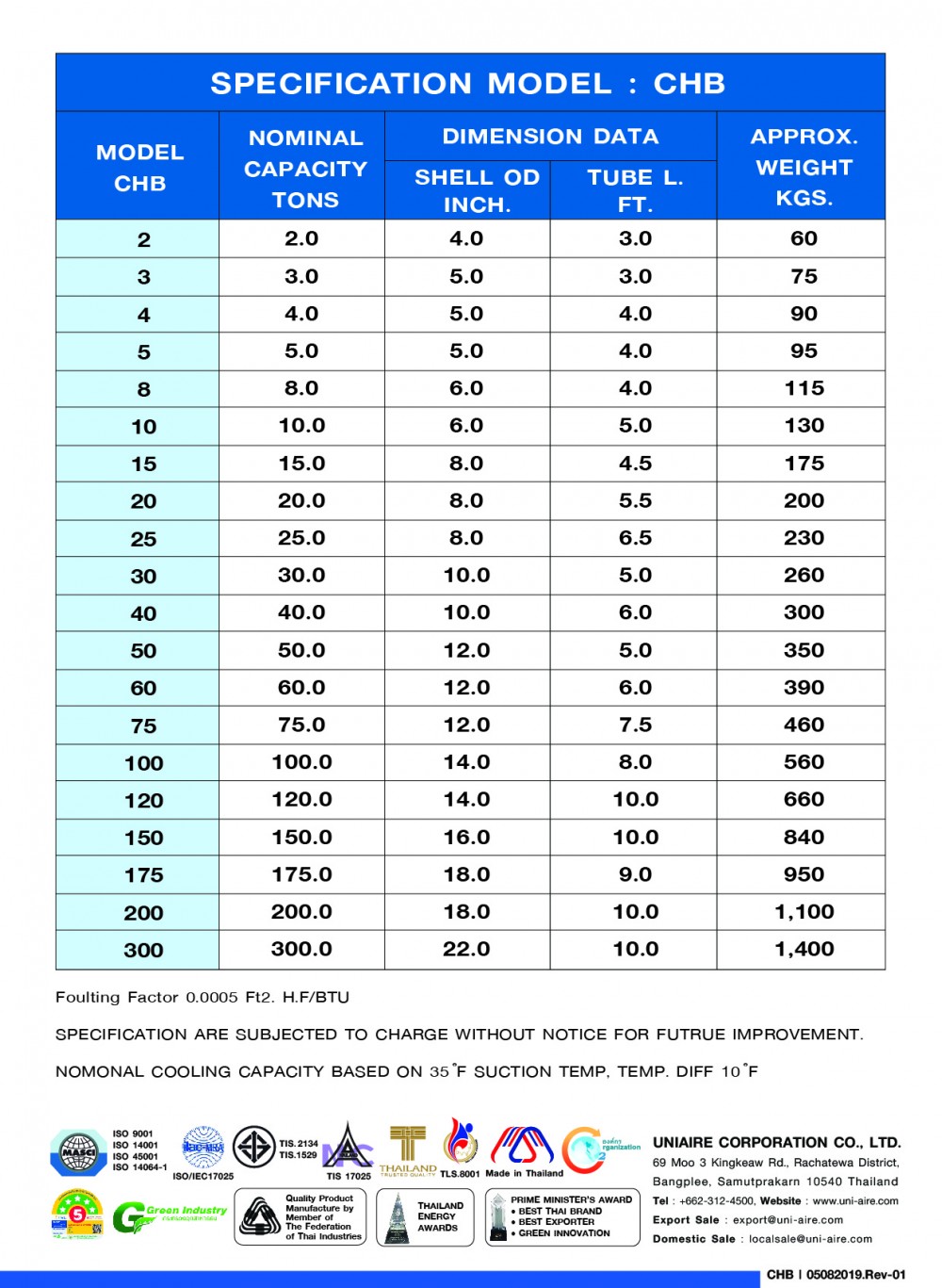

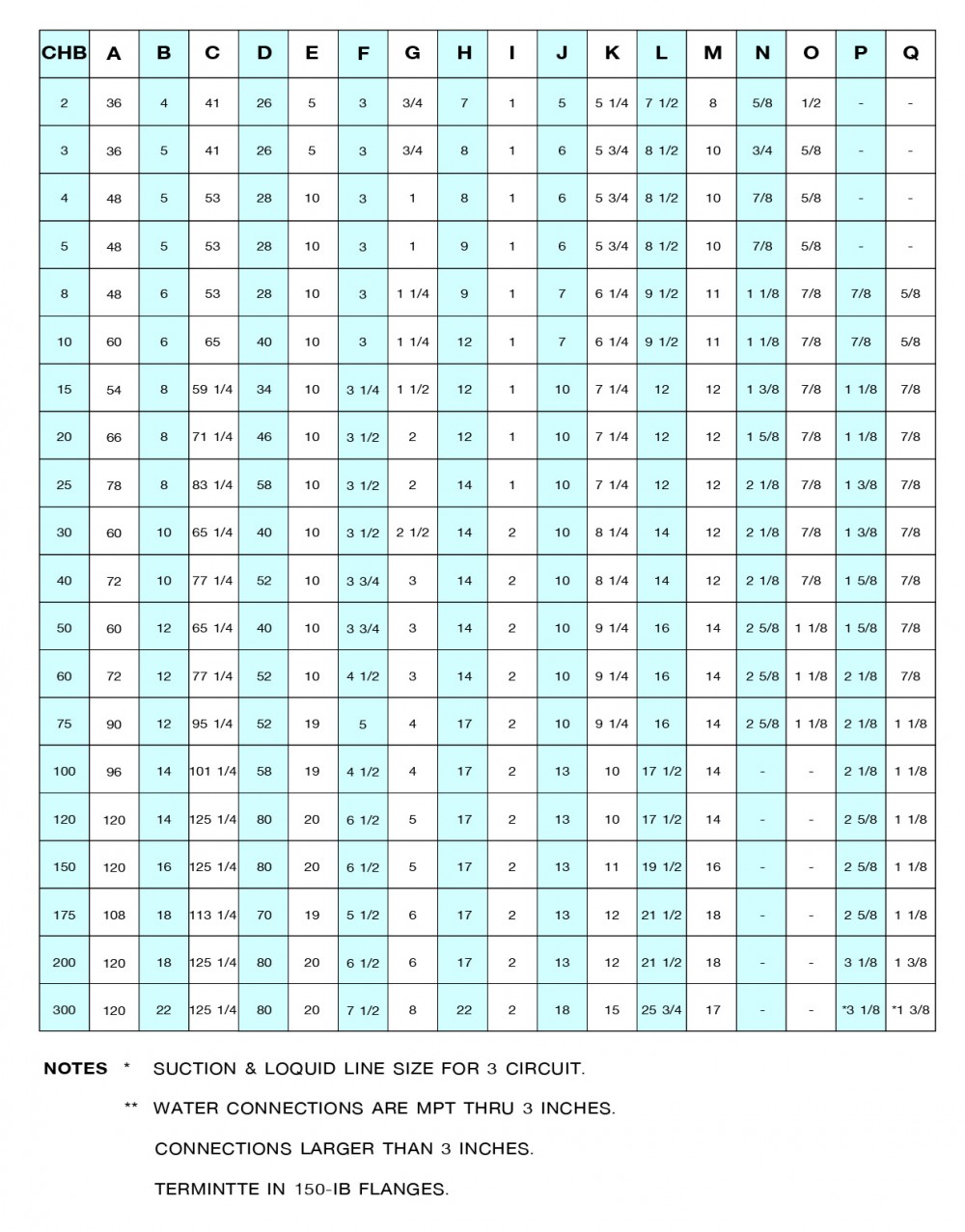

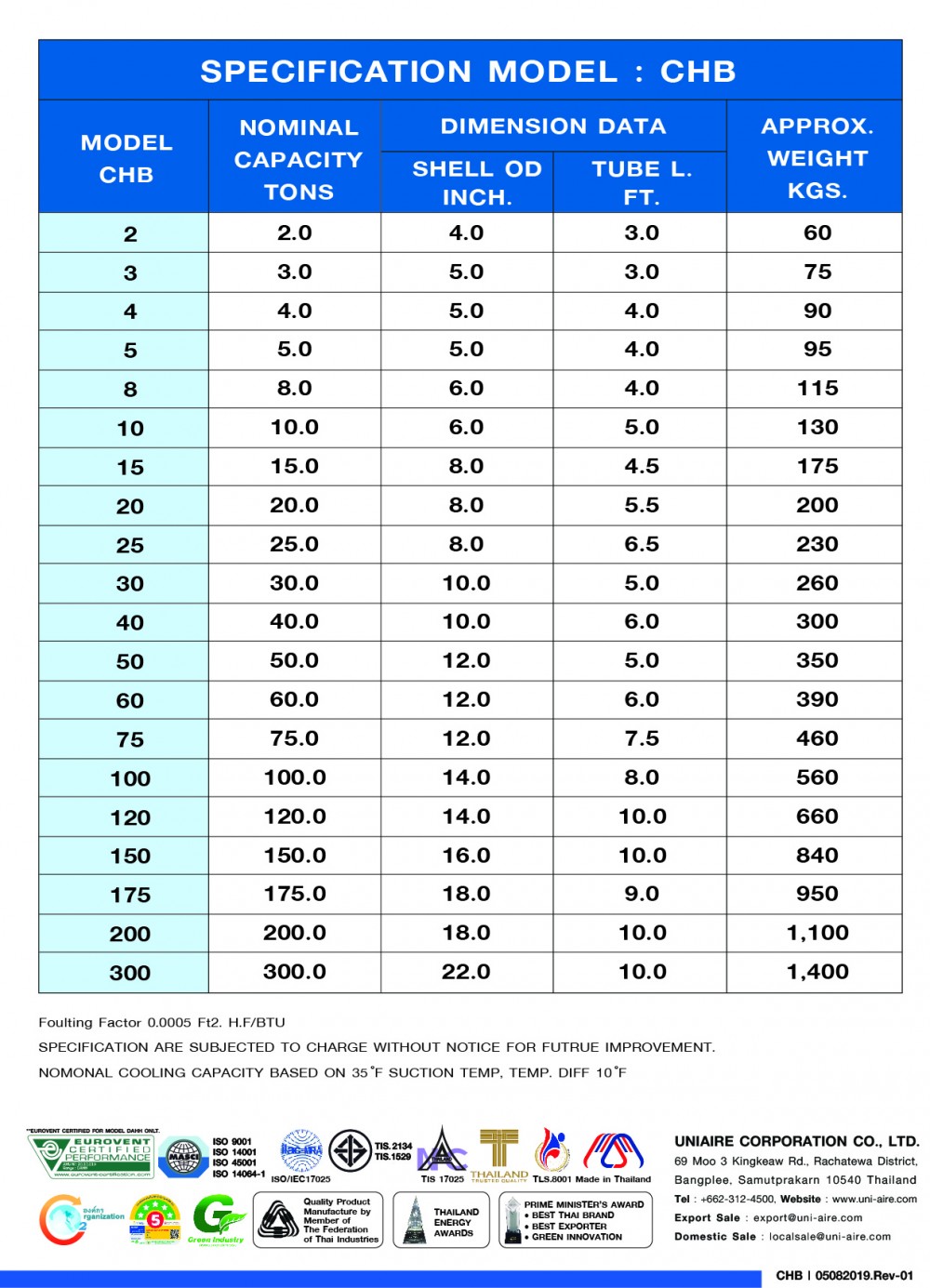

p-chb-specification-01
