UCS-WH

Commercial/Chilled-water Fan Coil Unit

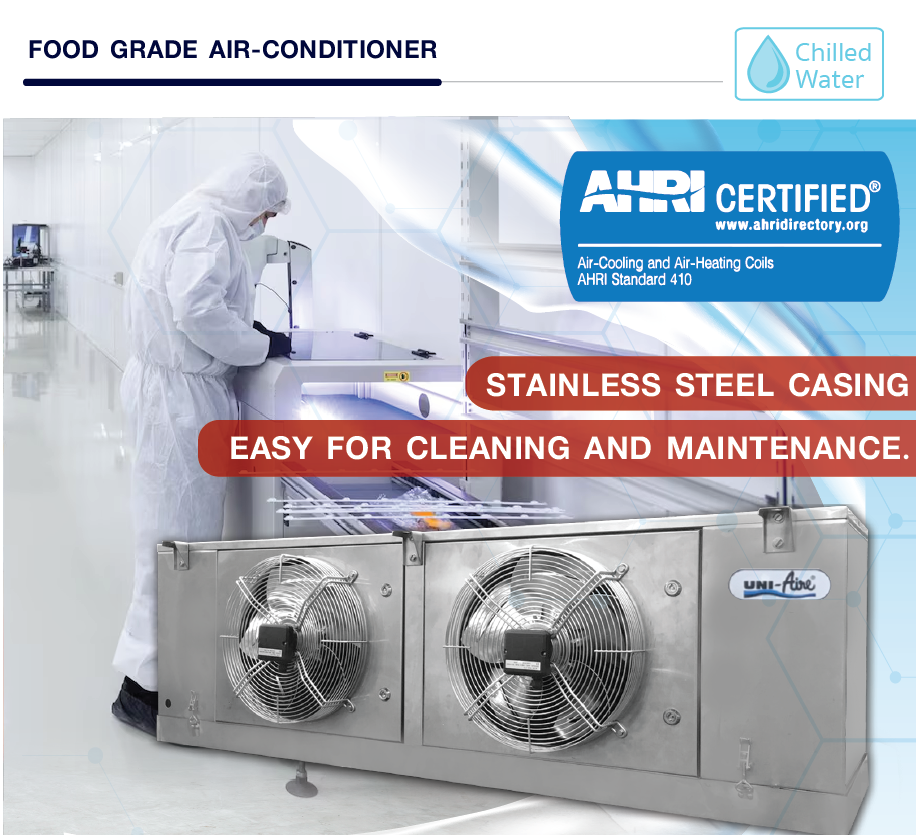

Food grade air-conditioner
Stainless steel casing for food factory
Chilled water coil
Cooling capacity 24,000 - 240,000 BTU/H


Model : UCS_WH (AHRI Certified)
• Casing grade 304 Stainless steel
• Screw, fan blade and fan guard are made from stainless steel.
• Easy for cleaning and maintenance.
• Perfect for hygienic food industry or high dusty environment which is the main cause of blockage in coil.


AHRI Certified Coils
AHRI Certified is the trusted mark of performance for heating, air conditioning, water heating, and commercial refrigeration equipment. Products earning the mark are subject to rigorous, independent, annual evaluation to ensure that they perform according to the participant’s published claims. Certifying equipment and component performance allows consumers to compare products based on independently verified performance ratings. To f ind AHRI Certified


 uses wave-structured aluminum fin (corrugated fin) pressed tightly onto smooth copper tubes to prevent scale build-up inside the tubes.


CASING
• Casing grade 304 Stainless steel
• Casing can be opened from 3 sides (front, left and right)
• Convenient for coil cleaning

FAN UNIT4 adjustable speed level
• Low energy consumed with high effififciency
• Screw, fan blade and fan guard are made from stainless steel.

Heat exchanger High quality copper tube, great for high pressure
• Wide 8 Fins Per Inch (FPI). Easy to clean
• Uninhabitable for germ and bacteria by wide gap fin arrangement

Water tray2 layers of water trays with 10 mm insulation as double protection for condensation


1. Remove water tray screws from the back of the fan coil unit


2. Use key to unlock the front cover
3. Remove screw no. 1 and no.2 to remove outer water tray
4. Remove screw no. 3 and no.4 to remove inner water tray


5. Use key to unlock the both side covers
6. In case of removing the water tray from the unit, remove the latch behind the unit and remove the water tray
7. Use only clean water to clean fan coil unit carefully
8. Assemble all parts backwardly and tight all screws


Green Guard Fin (Made to order)
corrosion prevention caused by ocean vapor and chemicals which extends coil life span.
*Consulting Uni-Aire’s sales engineer for possibility for each location is recommended.
Copper Fin condenser coil (Made to order)
Fin made from copper, extends life span of condenser coil. Suitable for seaside area and high acidic factory environment.
*Consulting Uni-Aire’s sales engineer for possibility for each location is recommended.


Digital wired thermostat (optional)
1. 4 Speed Motor 4 speeds adjustable wind blow Turbo-High-Medium-Low For Turbo cool or Quiet cool.
2. ECO Mode Power saving by automatically setting temperature at 25 °C
3. Turbo Fan Powerful turbo motor helps fill the coolness to the room quickly yet quietly.
4. Timer On / Off 24-hour timer for turning on or turning off the air conditioning system
5. Sleep Mode Adjust suitable tempuraturefor sleeping time


Wireless digital remote controller (optional)

1. 4 Speed Motor 4 speeds adjustable wind blow Turbo-High-Medium-Low For Turbo cool or Quiet cool.
2. ECO Mode Power saving by automatically setting temperature at 25 °C
3. Turbo Fan Powerful turbo motor helps fill the coolness to the room quickly yet quietly.
4. Timer On / Off 24-hour timer for turning on or turning off the air conditioning system
5. Sleep Mode Adjust suitable tempuraturefor sleeping time
