UFQ-WH

Commercial/Chilled-water Fan Coil Unit

Floor&Ceiling type,
Chilled-water, AHRI
Cooling capacity 12,000-60,000 BTU/H

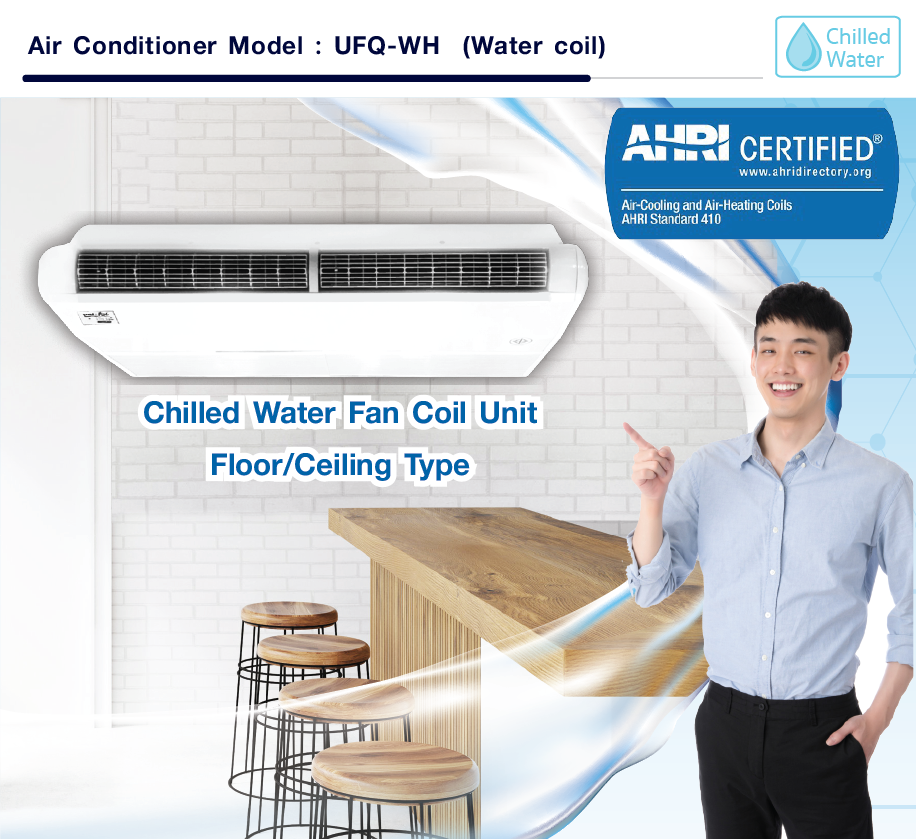

UFQ-W-01


AHRI Certified Coils
AHRI Certified is the trusted mark of performance for heating, air conditioning, water heating, and commercial refrigeration equipment. Products earning the mark are subject to rigorous, independent, annual evaluation to ensure that they perform according to the participant’s published claims. Certifying equipment and component performance allows consumers to compare products based on independently verified performance ratings. To find AHRI Certified


 Utilizes corrugated aluminum fins firmly bonded to smooth copper tubes to prevent scaling inside the pipes.


1. Durable material casing made from high - quality metal sheet, coated with anti - oxdation white powder coated
2. Copper tube Inner Groove Coopper Tube increase heat exchanger surface
3. Large Dust Filters Reduce large dust particles from room environment, easy to clean with warm water


• Manually adjustable air vent in 4 directions left - right & upper – lower
• Deliver cool air in wide area including area below the unit
• Available in f loor mounted  and ceiling mounted in one unit


Digital wired thermostat (For controlling the NO-PFF water valve system only.)
1. 4 Speed Motor 4 speeds adjustable wind blow Turbo-High-Medium-Low For Turbo cool or Quiet cool.
2. ECO Mode Power saving by automatically setting temperature at 25 °C
3. Turbo Fan Powerful turbo motor helps fill the coolness to the room quickly yet quietly.
4. Timer On / Off 24-hour timer for turning on or turning off the air conditioning system
5. Sleep Mode Adjust suitable tempuraturefor sleeping time


Wireless digital remote controller (optional)

1. 4 Speed Motor 4 speeds adjustable wind blow Turbo-High-Medium-Low For Turbo cool or Quiet cool.
2. ECO Mode Power saving by automatically setting temperature at 25 °C
3. Turbo Fan Powerful turbo motor helps fill the coolness to the room quickly yet quietly.
4. Timer On / Off 24-hour timer for turning on or turning off the air conditioning system
5. Sleep Mode Adjust suitable tempuraturefor sleeping time
